6025 Commercial Hydraulic Sweep

Hydraulic Sweep Header Image

For customers who want the robustness of the Springland Commercial Sweep but are retrofitting an existing bin or cannot provide the large concrete knock-out required for the 6025 Electric, we recommend the 6025 Hydraulic Surface Mount.

For customers who can accommodate a recessed drive, we recommend the 6025 Hydraulic Flush Mount.





Capacities

Auger Diameter Capacity* (bushels/hour wheat) Capacity* (MT/hour wheat)
10” 4,500 120
12” 6,000 160
16” 10,000 270



*Capacities may vary depending on grain type and condition



Features

Positive Drive System (PDS)

A significant amount of force is required to push a sweep through grain. The Springland Commercial Sweep uses the hydraulically driven Positive Drive System (PDS) to advance the sweep. A solid pinion wheel meshes with punched 38” angle track to provide excellent traction.

Feature: Positive Drive System

Articulating Frame Joint

For bins 105’ in diameter and larger, an articulated joint is placed between a pair of frames to compensate for uneven floors.

Feature: Pivot

Spring Wheels

The sweep is supported along its length by robust wheels featuring angle adjustment and integrated hard stops. Under the load of a full bin, internal springs allow the sweep to descend to rest on the hard stops.

Feature: Spring Wheel

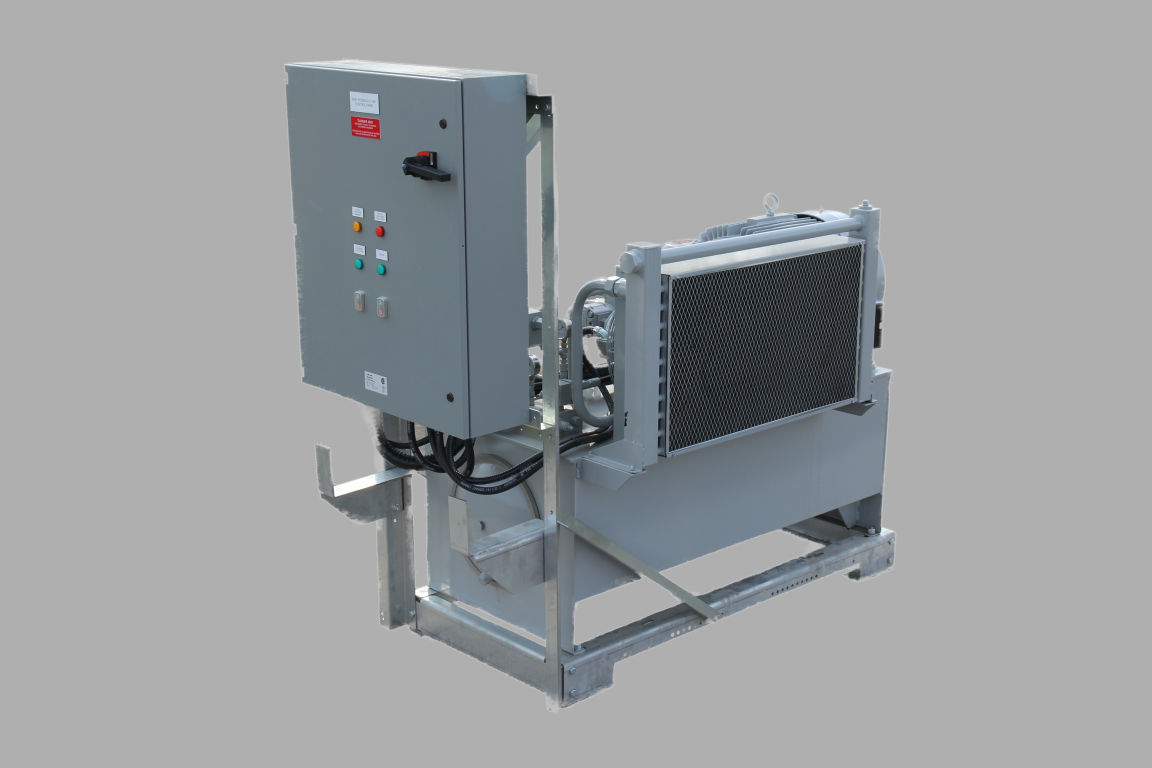

Hydraulic Power Unit

Power for the flighting and PDS is provided by a power unit separate from the sweep.

Power Unit Features

  • Selector control panel allows up to five sweeps to be connected to one power unit, with one sweep operating at a time.
  • The automatic advance manifold means that the PDS pushes the sweep into the grain as load on the flighting decreases, without operator intervention.
  • Oil tank heater
  • Oil cooler
  • High heat shut-down
  • Low oil shut-down

Feature: Power Unit

Ordering

Contact Springland for a quote.
