6025 Commercial Electric Sweep

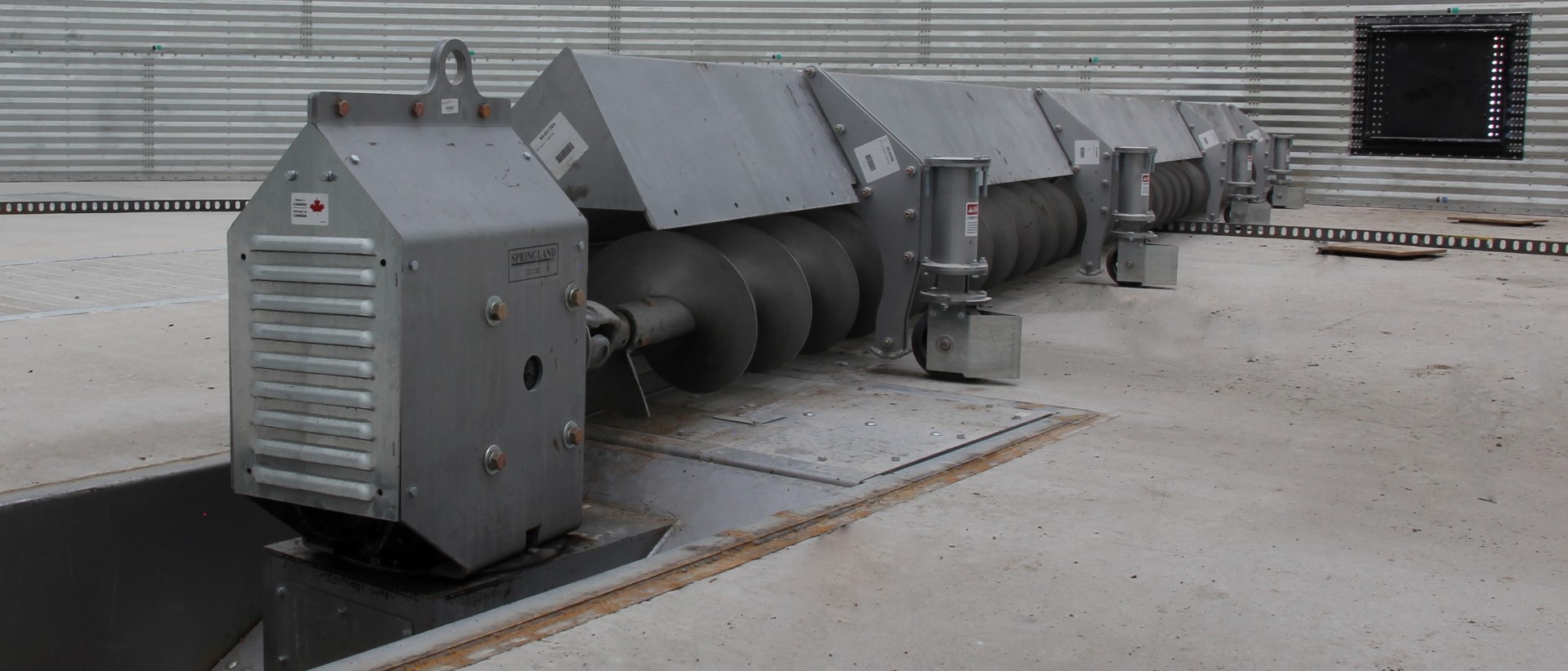

Commercial Sweep Header Image

Springland was first to market with a bin sweep capable of withstanding the grain loads present in large grain terminals. Today we continue to provide industry leading durability and ease of operation with the 6025 Series Commercial Sweep.



Sweep General Arrangement

Sweep General Arrangement


Auger Diameter Capacity* (bushels/hour wheat) Capacity* (MT/hour wheat)
10” 4,500 120
12” 6,000 160
16” 10,000 270
20” 20,000 530


*Capacities may vary depending on grain type and condition



Right Angle Drive

The Electric drive combines a right-angle gearbox and a rotating hydraulic union to exclude electric motors from the dusty bin interior. Major drive components can be accessed from the conveyer tunnel below the bin.

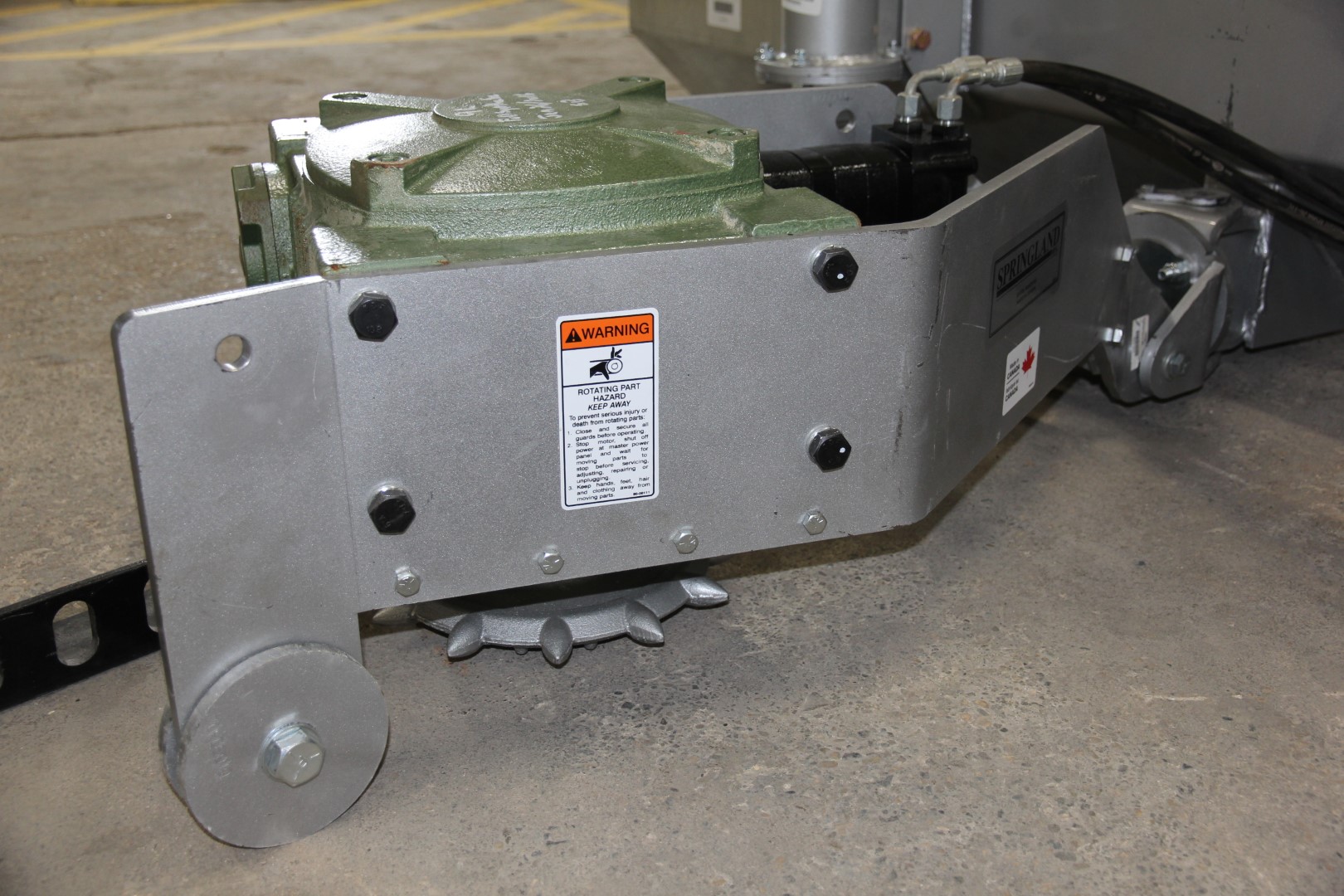

Positive Drive System (PDS)

A significant amount of force is required to push a sweep through grain. The Springland Commercial Sweep uses the hydraulically driven Positive Drive System (PDS) to advance the sweep. A solid pinion wheel meshes with punched 38” angle track to provide excellent traction.

Feature: Positive Drive System

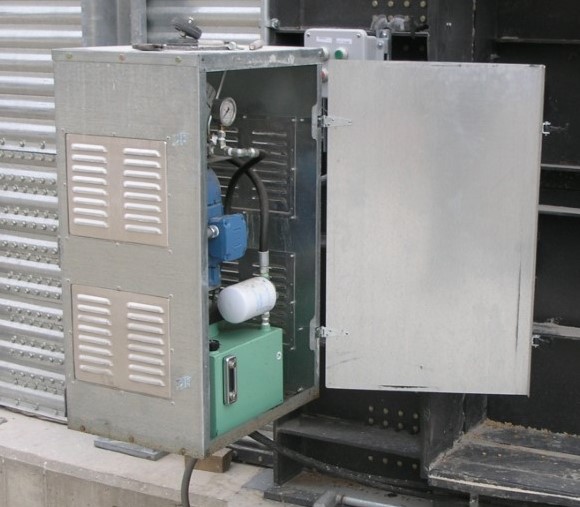

Sweep Control Cabinet

The Sweep Control Cabinet is located on the bin exterior, providing zero-entry control. The cabinet houses the hydraulic power pack supplying fluid to the PDS motor. Sweep advance is controlled by a three position valve, and pressure and flow can be adjusted for varying grain conditions.

Feature: Control Cabinet

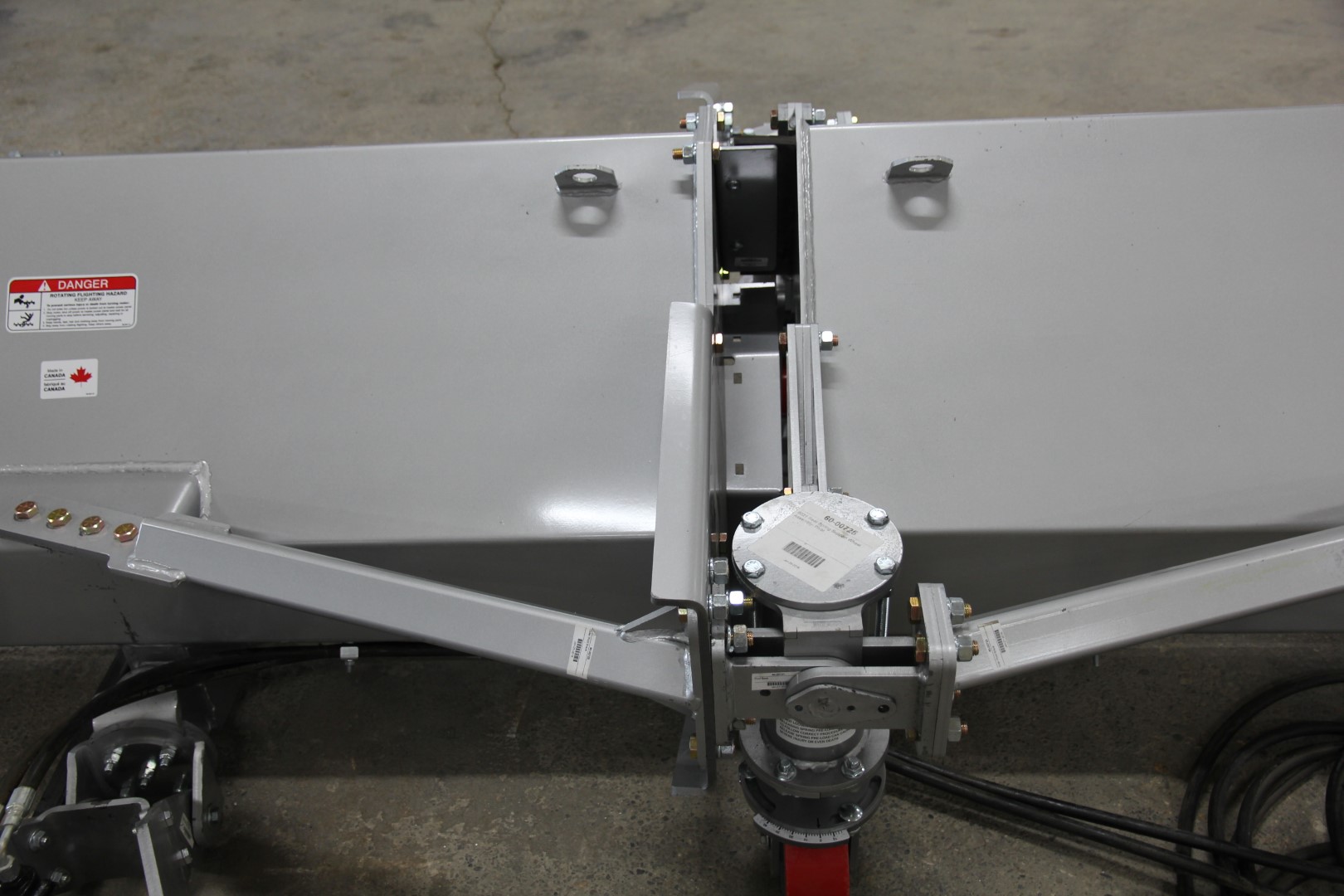

Articulating Frame Joint

For bins 105’ in diameter and larger, an articulated joint is placed between a pair of frames to compensate for uneven floors.

Feature: Pivot

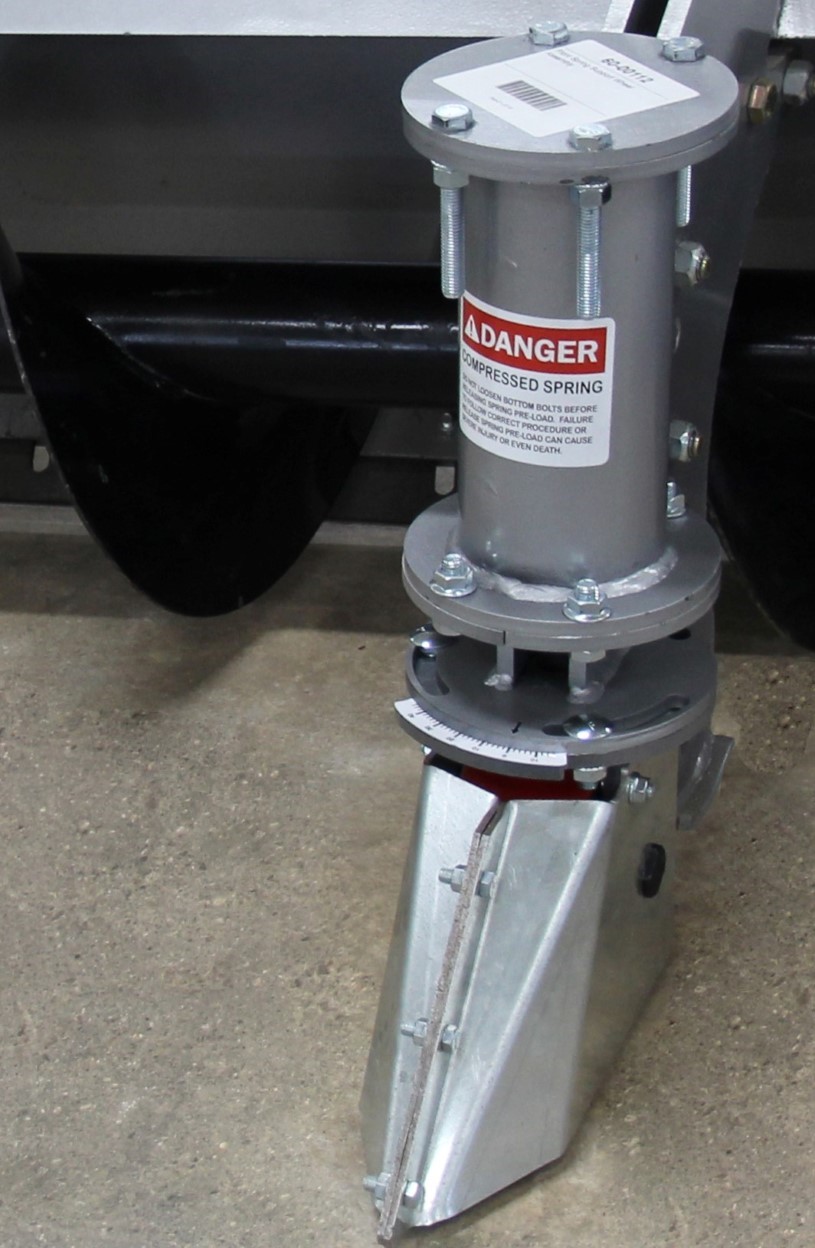

Spring Wheels

The sweep is supported along its length by robust wheels featuring angle adjustment and integrated hard stops. Under the load of a full bin, internal springs allow the sweep to descend to rest on the hard stops.

Feature: Spring Wheel


Solenoid Valve for Control Cabinet

Integrate the Sweep Control Cabinet into your own industrial control system: the manually operated hydraulic valve in the control cabinet is replaced with a 120V solenoid valve


Contact Springland for a quote.
